A Trusted, Space-Saving Residential Elevator for Flexible Home Installation
The Eclipse by Savaria is one of the best-selling home elevators we install in Virginia and North Carolina homes. Built for indoor residential use, this elevator is ideal for homeowners who need a compact, code-compliant solution that does not compromise on comfort or performance.
If you are planning a new home elevator addition or a retrofit of an existing one, the Eclipse is a proven option for up to six stops and 60 feet of vertical travel, all while maintaining a quiet, stable ride.
Key Benefits of the Savaria Eclipse
No Machine Room Required
The Eclipse features a unique machine room-less (MRL) design. Most mechanical components fit neatly into a closet or the elevator shaft itself.
MRL elevators means easier planning, quicker installation, and more usable space in your home.
Geared Chain Drive for Smooth Operation
The eclipse operates on a geared chain drive system engineered for long-term durability and ease of use. Paired with a variable frequency motor the Eclipse delivers a consistent, stable ride with fewer moving parts than traditional cable elevators.
Flexible Entry Configurations
The Eclipse can be configured for same-side, opposite, or 90-degree entry and exit, making it easy to adapt the elevator to your home’s layout.
Streamlined Maintenance Access
A convenient service panel allows easy technician access—whether it’s located inside or outside the shaft.
Eclipse Elevator Specifications
| Specification | Details |
|---|---|
| Drive System | Geared roller chain |
| Motor | 2 HP with variable frequency drive |
| Capacity | 750 lb (standard) / 950 lb / 1000 lb (Eclipse HD, where permitted) |
| Travel Distance | Up to 50 ft (60 ft where local code permits) |
| Maximum Stops | 6 |
| Speed | 40 ft/min (standard); optional 50 ft/min (code-dependent) |
| Minimum Pit Depth | 8″ (10″ for HD models) |
| Minimum Overhead Clearance | 96″ |
| Power Requirements | 230V, single-phase, 60 Hz, 20 amps with 30 amp fused disconnect |
| Applications | Indoor residential only |
Cab Sizes & Layouts
Choose from several standard cab sizes, or request a custom layout to suit your space.
| Width x Length x Height | Configuration Types |
| 36″ x 48″ x 80″ | Types 1–5 |
| 36″ x 54″ x 80″ | Types 1–5 |
| 36″ x 60″ x 80″ | Types 1–5 |
| 40″ x 54″ x 80″ | Types 1–5 |
| Optional Heights | 84″ and 96″ |
Need a custom size? We offer tailored cab sizing to fit your home’s footprint.
Standard Finishes & Features
- Modular cab design with white melamine or MDF panel interiors
- White ceiling with 4 LED pot lights
- Clear or bronze anodized aluminum control panels
- Double plywood flooring (custom flooring optional)
- Surface-mount telephone and digital display
- Automatic cab lighting
- Fully automatic operation
- Hideaway gate for maximum interior space
Optional Upgrades & Customization
- Cab Finishes: Luxury MDF, hardwood, unfinished veneer, or routed white panels
- Fixture Finishes: Stainless steel, brass, blackened stainless, or architectural white
- Touchscreen Car Operating Panel (COP): Swipe-based navigation, animated themes, and customizable landing names
- Luxury Flush Door: Seamless swing-door system with concealed hinges, emergency access, and drywall integration
- Gate & Door Options: Bi-folding, panel-fold, clear-fold, visi-fold, and automatic slim doors (minimum 84″ height required)
- Advanced Safety Features:
- Battery backup for lowering and lighting
- Emergency stop switch and hand-crank lowering
- Slack chain brake
- Lockable controls and interlocks
- Obstruction sensors and lighting triggers

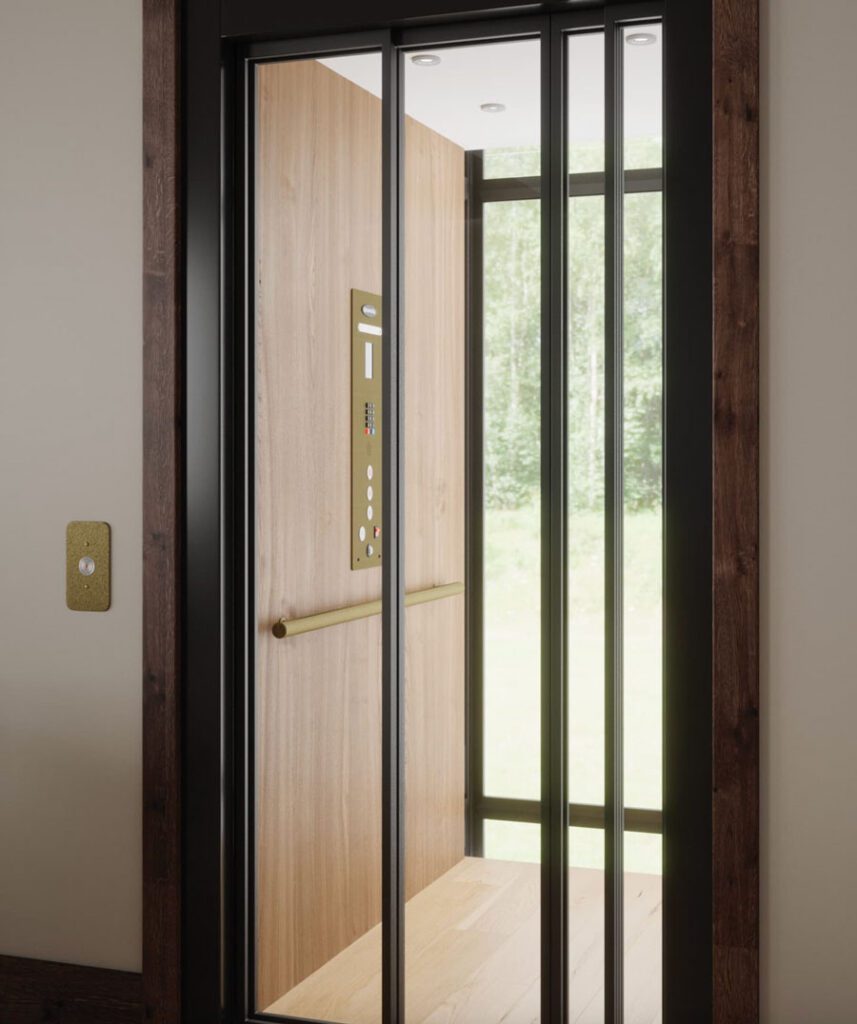

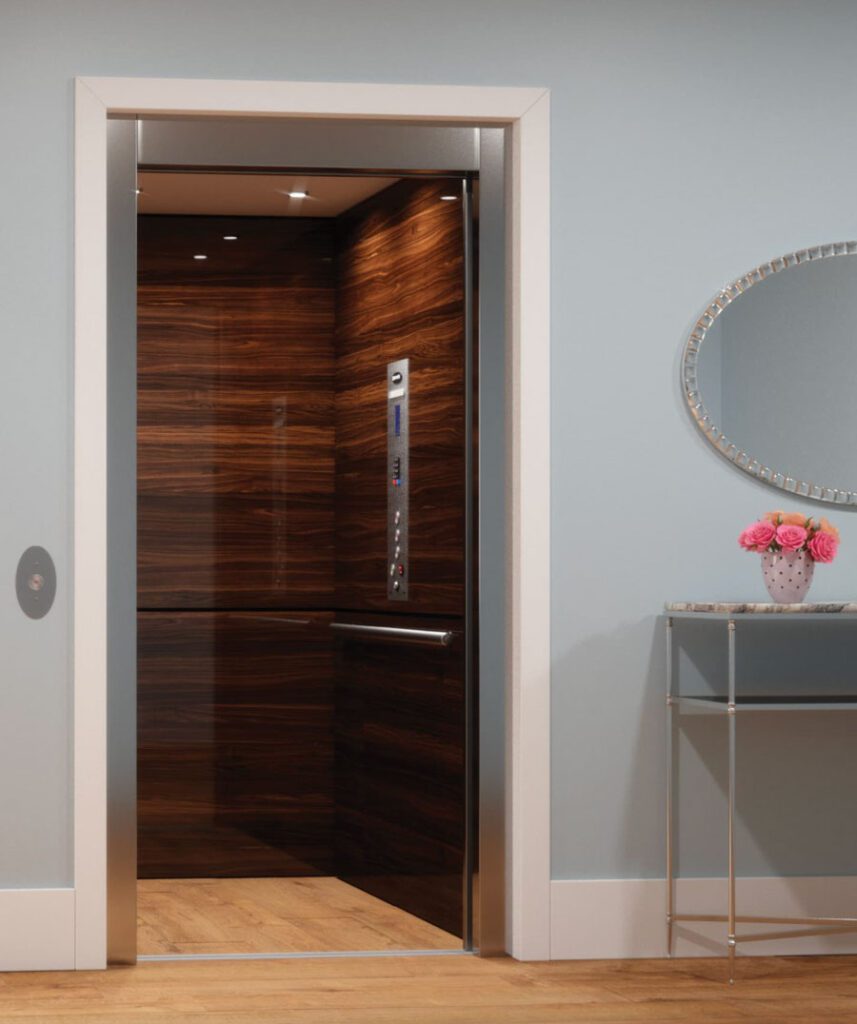

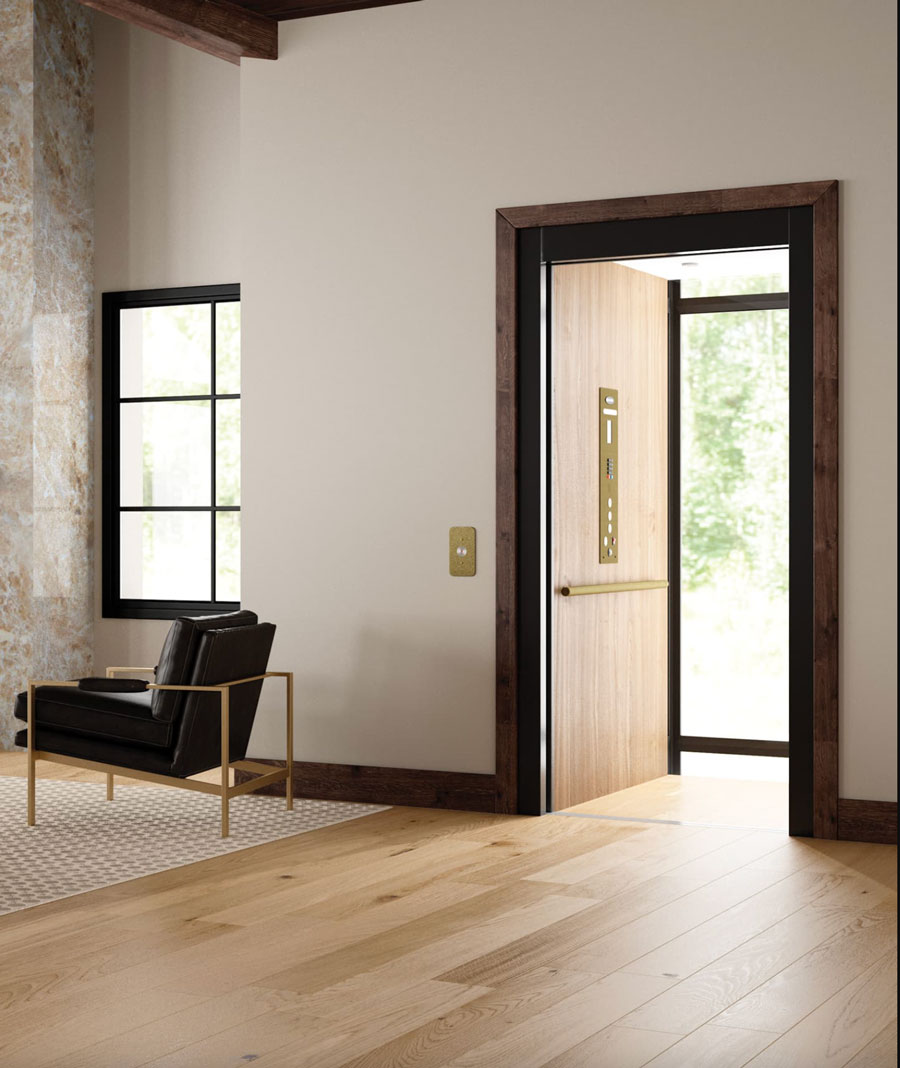

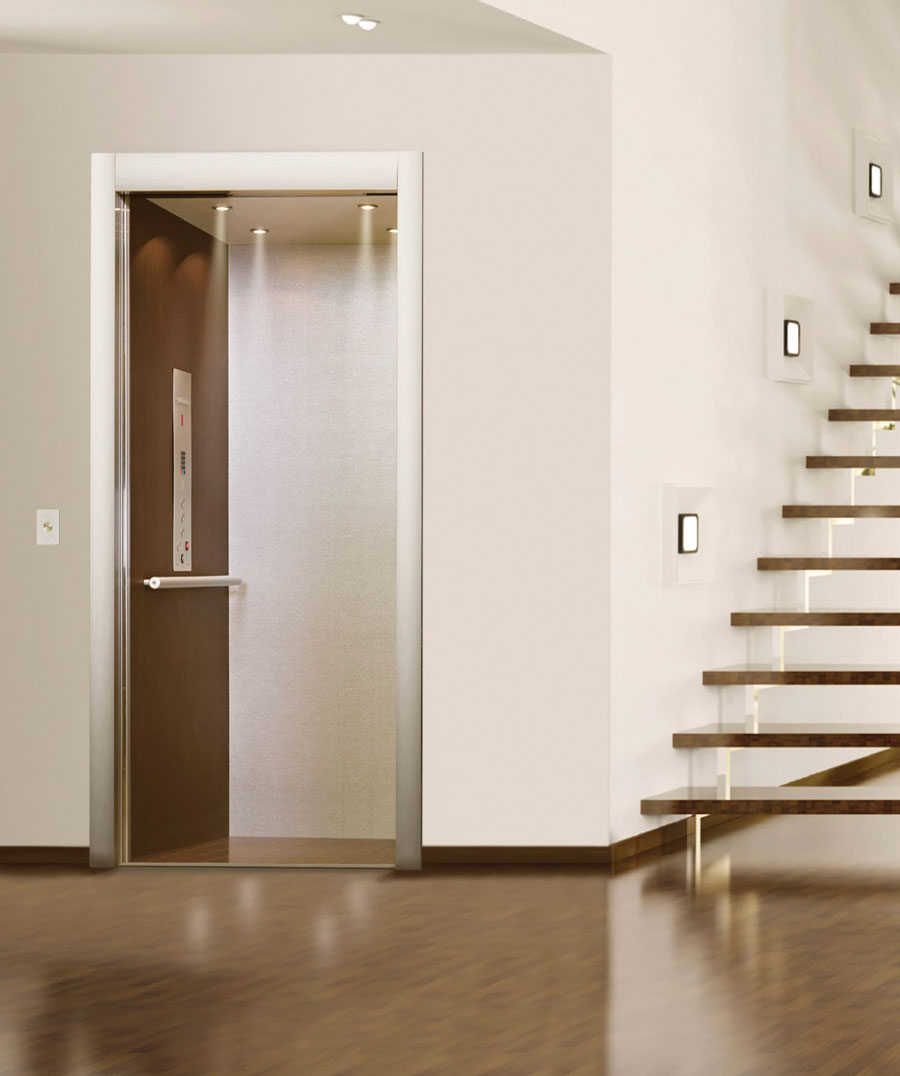

Eclipse Elevator Gallery
Why Choose the Savaria Eclipse?
Code-Compliant & ADA-Aware
Easy Integration into New or Existing Homes
Flexible Design for Multi-Level Living
Backed by a 36-Month Parts Warranty
