A Trusted, Space-Saving Residential Elevator for Flexible Home Installation
The Savaria Infinity home elevator is a premium hydraulic system designed for homeowners who want an exceptionally smooth, quiet ride with generous weight capacity. Built for indoor residential use, the Infinity is a great fit for both new construction and major remodels where a dedicated machine room is feasible.
With service for up to six stops and 50 feet of vertical travel, plus an available Infinity HD configuration for higher capacity, this model delivers the power, stability, and comfort needed for everyday use in multi-level homes.
What Sets the Savaria Infinity Apart
Ultra‑Smooth Hydraulic Ride
Infinity’s high-efficiency hydraulic drive system is engineered for an incredibly smooth, quiet ride. A submersible pump and motor, paired with a variable‑speed pressure valve, provide gentle starts and stops so passengers barely feel the motion.
Higher Capacity With Infinity HD
For homes that require increased capacity for mobility devices, passengers, or frequent use, the Infinity HD configuration offers up to 1,400 lb capacity (where allowed by local code). This home elevator a strong choice for larger households or more demanding applications.
Precise Leveling at Every Stop
The Infinity uses magnetic floor selection to automatically level the cab at each landing, helping the elevator meet the floor precisely and improving both safety and accessibility for wheelchairs, walkers, and in‑home transport.
Flexible Door & Layout Options
Just like the Eclipse, the Infinity can be configured for same-side, straight-through, or 90º entry and exit, making it easier to work around existing layouts, hallways, and corners. This flexibility makes it a great option for retrofits as well as custom builds.
Designed for Custom Finishes
The Infinity is built with customization in mind. From melamine or MDF wall panels to hardwood and luxury MDF upgrades, plus a variety of control panel and fixture finishes, you can tailor the elevator interior to blend naturally with your home’s design.
Savaria Infinity Elevator Specifications
| Specification | Details |
|---|---|
| Drive System | 1:2 cable hydraulic drive |
| Motor | 5 hp submersible hydraulic pump/motor |
| Capacity (Standard) | 750 lb, 950 lb, or 1,000 lb (code permitting) |
| Capacity (Infinity HD) | Up to 1,400 lb (code permitting) |
| Maximum Travel Distance | Up to 50 ft (15.24 m) |
| Maximum Stops | Up to 6 |
| Nominal Speed | 36 ft/min (0.18 m/s) |
| Minimum Pit Depth | 8″ (203 mm) standard; 12″ (305 mm) for HD |
| Minimum Overhead Clearance | 92″ (2337 mm) for standard 80″ cab; increased requirements for 84″ and 96″ cabs |
| Power Requirements | 208V three‑phase, 60 Hz, 30 amps or 230V single‑phase, 60 Hz, 30 amps |
| Applications | Indoor residential use only |
Cab Sizes & Configuration Options
Standard Cab Sizes
The Infinity offers several standard cab sizes, along with the ability to customize when needed:
- 36″ W x 48″ L x 80″ H – Types 1–5
- 36″ W x 54″ L x 80″ H – Types 1–5
- 36″ W x 60″ L x 80″ H – Types 1–5
- 40″ W x 54″ L x 80″ H – Types 1–5
Infinity HD Cab Size
- 48″ W x 60″ L x 80″ H – Types 1–5
Optional Cab Heights
- 84″ (2133 mm)
96″ (2438 mm)
Need something more specific? Custom cab sizes are available, allowing our team to work closely with you and your builder to fit the elevator into tight or unique footprints.
Finishes & Features
Every Savaria Infinity home elevator comes equipped with:
- High‑efficiency hydraulic drive for quiet, stable operation
- Fully automatic operation with one-touch controls
- Magnetic floor selection for precise automatic leveling
- Submersible pump and motor to reduce mechanical noise
- Digital display in the car operating panel
- Automatic cab lighting (on/off)
- Surface‑mount telephone for emergency calling
- White ceiling with 4 LED pot lights
- MDF or melamine interior walls in a choice of colors
- Double plywood floor ready for your flooring choice
Standard Safety Features
Safety is built into the Infinity design, including:
- Battery-operated emergency lowering and lighting (UPS)
- Emergency manual lowering from the hydraulic tank
- Lockable control panel to restrict access when needed
- Elevator door interlocks at each landing
- Emergency stop switch inside the cab
- In‑use indicator lights on hall stations
- Slack rope safety system
The Infinity is backed by a 36‑month parts warranty (see Savaria warranty details for full terms).
Optional Upgrades & Customization
Cab & Fixture Finishes
Enhance the look of your Savaria Infinity with:
- Cab Finishes: Hardwood, unfinished veneer, luxury MDF, or routed white MDF
- Fixture Finishes: Brass #4, stainless steel, blackened stainless, or architectural white
- Hall call stations available in rectangular or oval designs
Touchscreen Controls
Upgrade to an optional touchscreen car operating panel (COP) for a modern interface that allows you to:
- Customize landing names
- Swipe through animated screen themes
- Enjoy a cleaner, more intuitive user experience
(Not available for concurrent landing configurations.)
Luxury Flush Door Option
For a seamless, high-end look, the Luxury Flush Door offers:
- A solid 1¾” door slab with a substantial feel
- Concealed hinges and a hidden Kronenburg interlock
- Pockets to accommodate ½” drywall for a smooth, integrated appearance
- In-frame emergency release accessible from inside the cabin
- Low-profile frame in pure white or paintable aluminum
- Standard 36″ x 80″ sizing with custom sizes up to 42″ wide by 96″ tall
Gates, Doors & Additional Options
- Gate options: Bi-folding, Panel-fold, Visi-fold, and Clear-fold gates
- Power gate and door operators for added convenience
- Up to 6 stops and two-exit openings
- Speed upgrade to 40 ft/min, subject to local code
- Keyed hall call stations for restricted use
One Touch Alert System (Optional)
- The optional Savaria One Touch Alert System allows two‑way communication with pre‑programmed emergency contacts using an owner-supplied prepaid nano SIM card*. A single button triggers the alert, providing extra peace of mind.
- *Not compatible with 5G or eSIM cards.

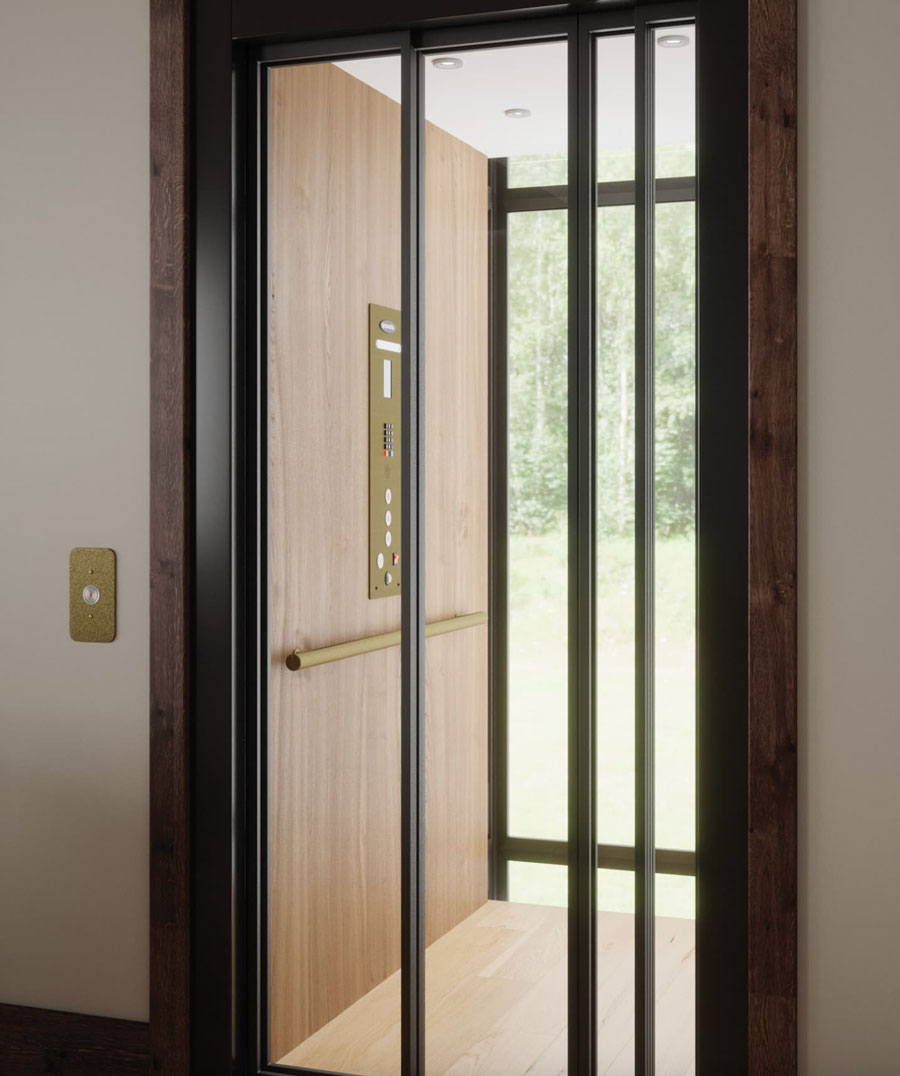

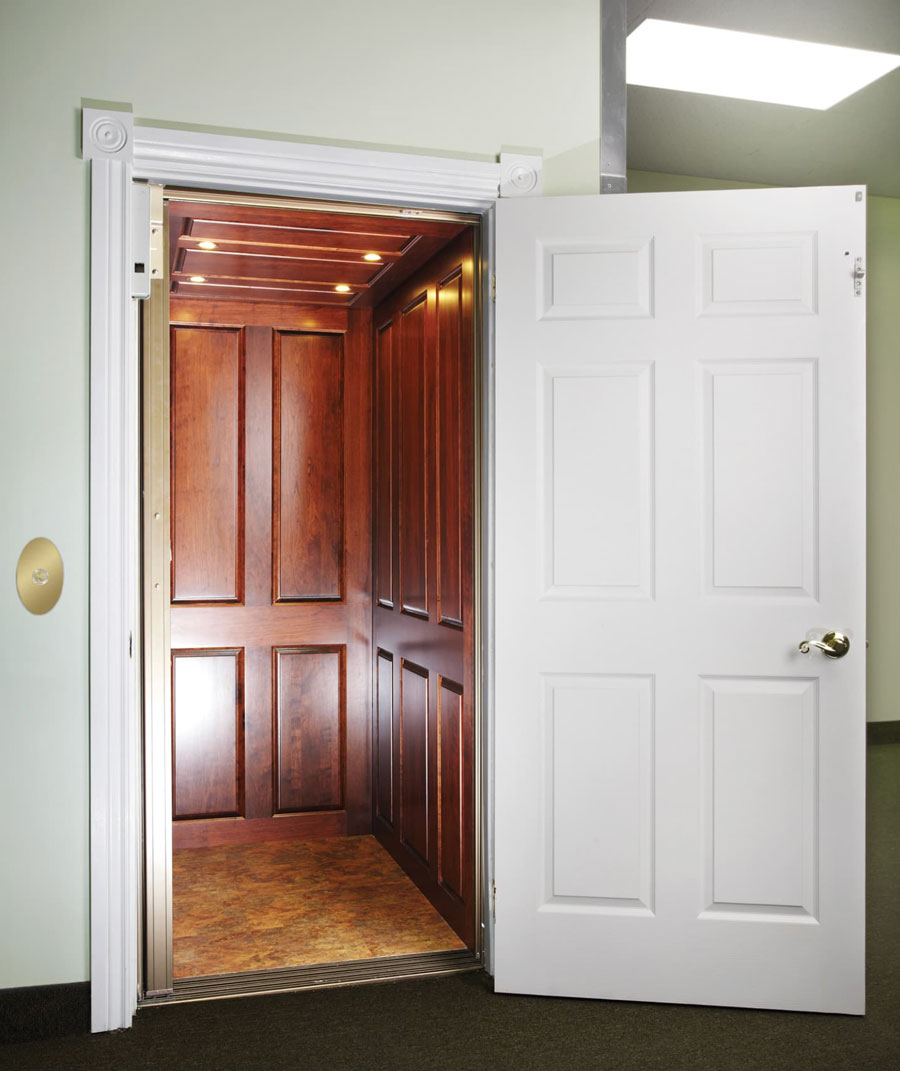

Eclipse Elevator Gallery
Is the Savaria Infinity Right for Your Home?
The Infinity home elevator is a strong fit if you:
- Want a hydraulic elevator with a noticeably smooth, quiet ride
- Have room for a dedicated machine room and pit
- Need higher capacity for mobility devices, passengers, or heavier use
- Want the flexibility of up to 6 stops and multiple door configurations
- Prefer a fully customizable cab interior that can match or elevate your decor
If you’re comparing it to the Savaria Eclipse, the Infinity is often the better pick where capacity and hydraulic performance are top priorities and space for a machine room is available.
Plan Your Savaria Infinity With Atlantic Elevators
Atlantic Elevators is a certified Savaria dealer serving Eastern North Carolina and Central & Southeastern Virginia. We’ll help you evaluate your space, compare models, and plan for all structural and electrical needs.
- Site evaluation & layout planning
- Guidance on cab size, finishes, and configuration
- Coordination with your builder or architect
- Professional installation and long-term maintenance
Call 252-473-1083 or request a Free Home Elevator Consultation to find out if the Savaria Infinity is the right choice for your project.
